Category: Emergency Fitting

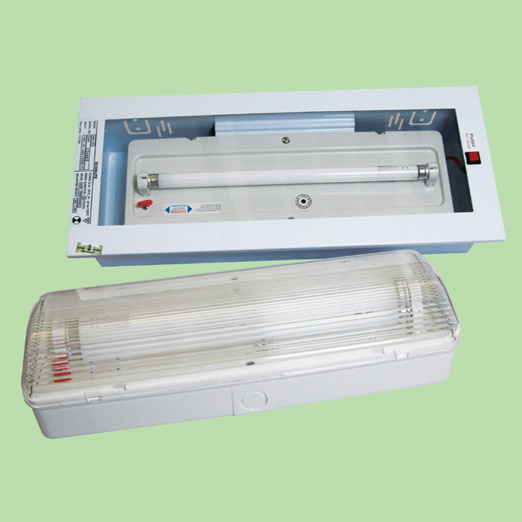

PC-118 & EM-11R
- Technical Data
- Brochure
- Certificates
|
Mode of Operation |
: Non-Maintained |
|
Input Voltage |
: 240V±10% - 50Hz |
|
Battery |
: Hi-Temp. Nickel Cadmium Battery |
|
Charging Current |
: 120mA (Nominal) |
|
Lamp Used |
: 1 x 8.0 Watt Fluorescent Tube |
|
Operation Temperature |
: 0°C to 60°C |
|
Charger |
: Fully Automatic Constant Current. |
|
Indication |
: Red L.E.D. “On” Indicates Charging. |
|
Backup Time |
: 3 Hours Duration. |
|
Construction (PC 118) |
: Injection Moulded Fire-Retardant ABS Polyester Housing with Side Knockout Cable Entry. |
|
Construction (EM-11R) |
: Electro-Galvanished Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating and Polycarbonate Diffuser. |
|
Weight |
: PC 118 Ω 0.8kg / EM-11R Ω 2.0kg |
|
# Warranty |
: 5 Years |
|
Compliance |
: Malaysia Standards MS-619, IP-20. |
|
Protection |
: Low-Voltage Cut-Off to Prevent Over-Discharge of Battery. |
Specification subject to change without prior notice.
Download the PDF brochure
No Certificate available.
